System Architecture

Understanding the architecture is crucial for building and maintaining the application. This section covers the overall system design, data flow, and component relationships.

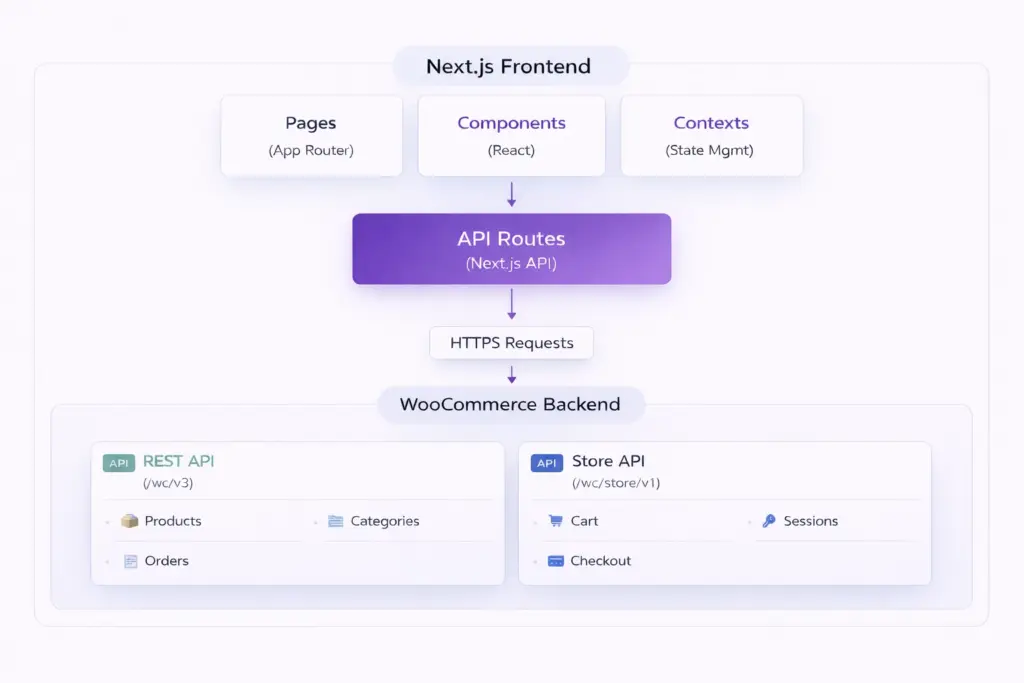

High-Level Architecture

The application follows a headless commerce architecture with clear separation between frontend and backend:

Architecture Layers

Data Flow

1. Product Fetching Flow

• User visits shop page
• Next.js Server Component calls WooCommerceAPI.getProducts()
• WooCommerce client makes request to REST API
• WooCommerce returns product data
• Server Component renders products to HTML
• HTML sent to browser (no JavaScript needed for initial render)

2. Cart Operations Flow

• User clicks “Add to Cart”
• Client Component calls addToCart() from CartContext
• Context makes POST request to /api/cart
• API route proxies to WooCommerce Store API
• Store API updates cart and returns cart token
• Cart token stored in cookies
• Context updates local state
• UI updates immediately (optimistic update)

Directory Structure

The project follows Next.js 15 App Router conventions:

src/
├── app/
│   ├── (admin)/admin/         # Admin routes (/admin/*)
│   ├── (public)/              # Public routes (/)
│   │   ├── shop/              # Shop page
│   │   ├── product/[slug]/    # Product details
│   │   ├── cart/              # Shopping cart
│   │   ├── checkout/          # Checkout
│   │   └── account/           # User account
│   └── api/                   # API routes
│       ├── products/          # Products API
│       ├── cart/              # Cart API
│       ├── checkout/          # Checkout API
│       └── admin/             # Admin API
├── components/                # React components
├── contexts/                  # State management
├── lib/woocommerce.js         # WooCommerce client
└── middleware.js              # Route protection

Route Groups

Next.js uses route groups (folders in parentheses) to organize routes without affecting the URL structure:

(admin) Route Group

• Purpose: Admin-only routes with authentication
• Layout: Admin sidebar layout
• Routes: All routes under /admin/*
• Protection: Requires admin authentication

(public) Route Group

• Purpose: Public-facing customer routes
• Layout: Public layout with header and footer
• Routes: Shop, product, cart, checkout, account pages
• Protection: Some routes require authentication (account, checkout)

Component Architecture

Server Components (Default)

• Run on the server only
• No JavaScript sent to client
• Can directly access databases and APIs
• Better for SEO and performance
• Used for: Data fetching, static content

Client Components

• Run in the browser
• Require "use client" directive
• Can use React hooks and browser APIs
• Used for: Interactive UI, state management, event handlers

State Management Architecture

React Context API

The project uses React Context for global state management:

• CartContext: Manages shopping cart state, operations, and synchronization with WooCommerce
• WishlistContext: Manages wishlist items stored in browser cookies

API Architecture

Next.js API Routes

API routes act as a proxy layer between frontend and WooCommerce:

• Authentication: Handle API credentials server-side
• Request Transformation: Transform requests to WooCommerce format
• Response Transformation: Format responses for frontend consumption
• Error Handling: Centralized error handling and logging
• Security: Hide API credentials from client

WooCommerce Integration Points

Security Architecture

Authentication Flow

• User submits credentials
• Frontend sends to /api/login
• API route authenticates with WordPress
• JWT token returned
• Token stored in httpOnly cookie
• Middleware validates token on protected routes

Cart Session Management

• Cart token generated by WooCommerce Store API
• Token stored in httpOnly cookie
• Token sent with each cart request
• Token persists across page refreshes

Next Steps: Learn more about WooCommerce Integration and Next.js Frontend patterns.
